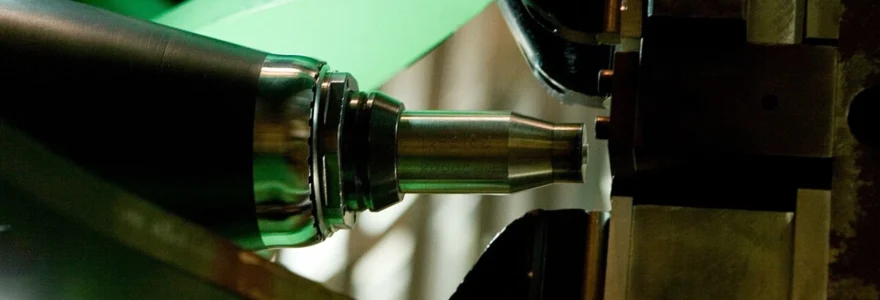

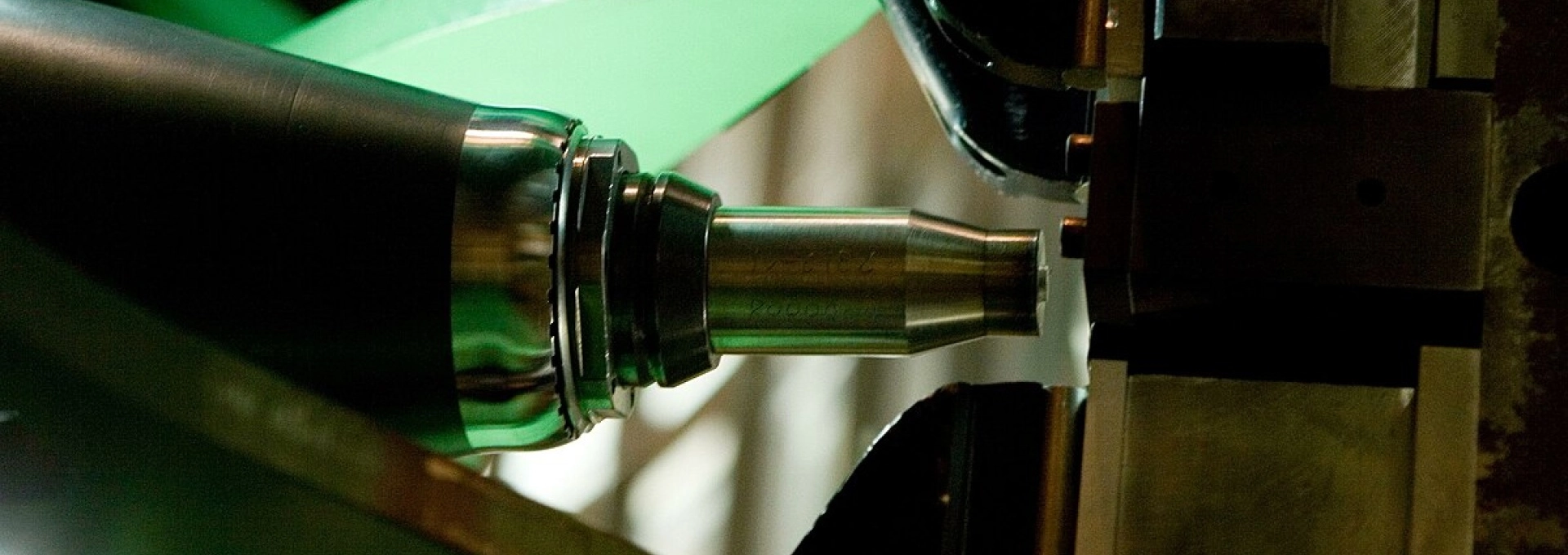

Friction stir welding (FSW) has revolutionized the joining of materials, particularly in industries where high-strength, lightweight connections are crucial. As the demands for specialized welding applications grow, so does the need for customized FSW tools. These tools are the linchpin in achieving precise, high-quality welds across a diverse range of materials and geometries.
Material selection and tool geometry for FSW applications
The selection of appropriate materials and the design of tool geometry are fundamental aspects of customizing the friction stir welding tool for specialized projects. These factors directly influence the tool's performance, longevity, and the quality of the welds produced. Engineers must carefully consider the properties of the materials being joined, the desired weld characteristics, and the operational parameters when making these crucial decisions.
Tungsten carbide vs. polycrystalline cubic boron nitride (PCBN) tools
When it comes to high-performance FSW tools, tungsten carbide and PCBN are often at the forefront of material choices. Tungsten carbide offers excellent wear resistance and toughness, making it suitable for welding aluminum alloys and other softer materials. On the other hand, PCBN excels in high-temperature applications and provides superior hardness, making it ideal for welding steels and other hard materials.
The choice between these materials often comes down to the specific requirements of the welding project. For instance, PCBN tools can maintain their properties at temperatures exceeding 1000°C, which is crucial when working with high-melting-point alloys. However, their higher cost compared to tungsten carbide tools means that they are typically reserved for applications where their unique properties are absolutely necessary.
Optimizing shoulder diameter and pin length ratios
The geometry of FSW tools plays a critical role in determining the quality and efficiency of the welding process. One of the key aspects of tool geometry is the ratio between the shoulder diameter and the pin length. This ratio affects the heat generation, material flow, and overall weld quality.
Typically, a larger shoulder diameter relative to the pin length results in increased heat generation due to greater friction surface area. This can be beneficial for materials with high melting points or when higher welding speeds are desired. Conversely, a smaller shoulder-to-pin ratio may be preferred for materials prone to overheating or when working with thin sheets where excessive heat input could lead to distortion.
Implementing scrolled and featured shoulder designs
Innovative shoulder designs have emerged as a way to enhance material flow and improve weld quality. Scrolled shoulders, featuring spiral grooves on the tool surface, help to direct plasticized material inward towards the pin, resulting in better mixing and reduced flash formation. These designs are particularly effective in preventing material escape and ensuring a smoother weld surface.
Featured shoulders, which may include concentric circles, radial grooves, or other patterns, can further optimize material flow and heat generation. These features can be customized based on the specific welding parameters and material properties, allowing for fine-tuned control over the welding process.
Tapered and threaded pin profiles for enhanced material flow
The pin profile of an FSW tool is crucial in determining how material flows during the welding process. Tapered pins, which gradually decrease in diameter from the shoulder to the tip, can improve material flow and reduce the forces required during welding. This design is particularly beneficial when working with thicker materials or when aiming to reduce tool wear.
Threaded pin profiles add another dimension to material flow control. The threads act like an Archimedes screw, actively moving material from the top to the bottom of the weld. This vertical movement is essential for ensuring thorough mixing throughout the weld thickness and can significantly improve weld strength and quality.
Advanced FSW tool coatings and surface treatments
To further enhance the performance and longevity of FSW tools, advanced coatings and surface treatments have become increasingly popular. These treatments can significantly improve tool wear resistance, reduce friction, and even influence the welding process itself.
Titanium nitride (TiN) and titanium aluminum nitride (TiAlN) coatings
TiN and TiAlN coatings are widely used in the tooling industry, including for FSW applications. These coatings offer excellent hardness and wear resistance, which can substantially extend the life of FSW tools. TiN coatings provide a good balance of hardness and toughness, while TiAlN coatings offer superior oxidation resistance at high temperatures.
The golden color of TiN coatings also serves a practical purpose in FSW applications. As the coating wears away during use, the color change provides a visual indicator of tool wear, allowing operators to monitor tool condition without the need for complex measurement techniques.
Diamond-like carbon (DLC) coatings for reduced friction
DLC coatings represent a significant advancement in FSW tool technology. These coatings provide an exceptionally low coefficient of friction, which can have several benefits in the FSW process. Reduced friction means less heat generation, which can be advantageous when welding heat-sensitive materials or when trying to minimize thermal distortion in thin sections.
Moreover, the reduced friction can lead to lower torque requirements during welding, potentially allowing for the use of smaller, more energy-efficient welding machines. The extreme hardness of DLC coatings also contributes to excellent wear resistance, further extending tool life.
Plasma nitriding processes for tool longevity
Plasma nitriding is a surface hardening process that can significantly improve the wear resistance and fatigue strength of FSW tools. Unlike coatings that are applied to the surface, plasma nitriding creates a hardened layer by diffusing nitrogen into the surface of the tool material. This process is particularly effective for steel-based FSW tools, providing a hardened layer that can be several hundred micrometers deep.
The advantages of plasma nitriding include improved wear resistance, increased surface hardness, and enhanced corrosion resistance. These benefits translate to longer tool life and more consistent weld quality over extended production runs.
Specialized FSW tools for High-Temperature alloys
As FSW technology expands into new material territories, the development of specialized tools for high-temperature alloys has become a critical area of research and development. These tools must withstand extreme temperatures and maintain their mechanical properties under severe conditions.
Refractory metal tools for Nickel-Based superalloys
Nickel-based superalloys, known for their exceptional strength and corrosion resistance at high temperatures, present unique challenges for FSW. Refractory metals such as tungsten, molybdenum, and rhenium have emerged as promising materials for FSW tools designed to weld these alloys.
These refractory metal tools can maintain their strength and hardness at the extreme temperatures encountered when welding superalloys, which can exceed 1000°C. However, their brittle nature and complex manufacturing requirements present challenges that researchers are actively working to overcome.
Ceramic matrix composite (CMC) tools for titanium aluminides
Titanium aluminides are intermetallic compounds that offer an attractive combination of low density and high-temperature strength, making them valuable in aerospace applications. However, their high reactivity and low ductility make them challenging to weld using conventional techniques.
CMC tools, typically composed of silicon carbide or silicon nitride reinforced with ceramic fibers, offer a promising solution for FSW of titanium aluminides. These tools combine high-temperature strength with excellent wear resistance and chemical inertness, making them well-suited for this demanding application.
Cooled tool systems for Heat-Sensitive materials
For materials that are particularly sensitive to heat or in applications where minimizing the heat-affected zone is critical, cooled tool systems have been developed. These innovative tools incorporate internal cooling channels that allow for the circulation of coolant during the welding process.
By actively cooling the tool, these systems can maintain lower temperatures at the tool-workpiece interface, reducing thermal damage to the material being welded. This approach has shown promise in welding heat-sensitive aluminum alloys and in applications where maintaining precise microstructural control is essential.
Integrating sensors and monitoring systems in FSW tools
The integration of sensors and monitoring systems into FSW tools represents a significant leap forward in process control and quality assurance. These smart tools provide real-time data that can be used to optimize welding parameters, detect defects, and ensure consistent weld quality.
Thermocouple integration for Real-Time temperature profiling
Temperature control is critical in FSW, as it directly affects material flow and weld properties. By integrating thermocouples into the FSW tool, typically near the shoulder or pin, engineers can obtain real-time temperature data during the welding process. This information can be used to adjust welding parameters on the fly, ensuring that the optimal temperature range is maintained throughout the weld.
Advanced systems may use multiple thermocouples placed at different locations within the tool to create a comprehensive temperature profile of the weld zone. This detailed thermal mapping can provide insights into heat distribution and help in the development of more efficient welding strategies.
Force sensors for axial load and torque measurement
The forces experienced by an FSW tool during welding provide valuable information about the process dynamics. By incorporating force sensors into the tool or the welding machine, it's possible to measure axial load and torque in real-time. These measurements can indicate changes in material properties, detect the presence of defects, or signal the need for parameter adjustments.
For example, a sudden increase in axial force might indicate the presence of harder material or an inclusion in the weld path, while fluctuations in torque could signal inconsistencies in material flow. By monitoring these forces, operators can make informed decisions to maintain weld quality and prevent tool damage.
Acoustic emission sensors for defect detection
Acoustic emission (AE) sensors offer a non-destructive method for detecting defects during the FSW process. These sensors detect high-frequency elastic waves generated by the release of strain energy as defects form or propagate. By analyzing the acoustic signals produced during welding, it's possible to identify and locate defects in real-time.
The integration of AE sensors into FSW systems allows for continuous monitoring of weld quality without the need for post-weld inspection. This can significantly reduce production time and costs associated with quality control, while also enabling immediate corrective action if defects are detected.
FSW tool design for Multi-Material and dissimilar metal joining
As industries push the boundaries of material science, the need for joining dissimilar metals has grown significantly. FSW has emerged as a promising technique for these challenging applications, but it requires specialized tool designs to effectively join materials with different properties.
Hybrid pin designs for Aluminum-Steel joints
Joining aluminum to steel is a common requirement in automotive and aerospace industries, where weight reduction and strength are critical factors. Hybrid pin designs have been developed to address the challenges posed by the differing properties of these materials.
These tools often feature a pin made of a highly wear-resistant material, such as tungsten carbide, with a geometry optimized to promote material mixing at the aluminum-steel interface. The shoulder may be designed with features that enhance heat generation on the steel side while preventing overheating of the aluminum.
Offsetting tool position for optimal material mixing
When joining dissimilar materials, the position of the tool relative to the joint line can significantly impact weld quality. Offsetting the tool towards the harder material (e.g., steel in an aluminum-steel joint) can help achieve better material mixing and a stronger bond.
This technique allows the tool to plasticize more of the harder material, which can then be dispersed into the softer material. The exact offset distance is critical and must be carefully optimized based on the specific materials being joined and the desired weld properties.
Dual-rotation tools for enhanced interface properties
Innovative dual-rotation tool designs have shown promise in improving the interface properties of dissimilar metal joints. These tools feature a pin and shoulder that can rotate independently, allowing for greater control over heat generation and material flow.
By rotating the shoulder and pin at different speeds or even in opposite directions, it's possible to create complex flow patterns that enhance mixing at the material interface. This approach has shown particular promise in creating strong, defect-free joints between materials with significantly different melting points or mechanical properties.
Advances in FSW tool manufacturing techniques
The evolution of manufacturing technologies has opened up new possibilities in FSW tool design and production. These advanced manufacturing techniques allow for the creation of complex geometries and the use of exotic materials that were previously impractical or impossible to work with.
Additive manufacturing for complex tool geometries
Additive manufacturing, or 3D printing, has revolutionized the production of FSW tools with complex geometries. This technology allows for the creation of intricate internal features, such as cooling channels or sensor cavities, that would be extremely difficult or impossible to produce using traditional manufacturing methods.
Moreover, additive manufacturing enables rapid prototyping of new tool designs, significantly reducing the time and cost associated with tool development. Engineers can quickly iterate through multiple design concepts, testing and refining their ideas in a fraction of the time required by conventional manufacturing processes.
Precision machining with 5-axis CNC systems
For FSW tools requiring extremely tight tolerances or made from hard-to-machine materials, 5-axis CNC machining systems offer unparalleled precision and flexibility. These advanced machines can approach the workpiece from multiple angles, allowing for the creation of complex geometries in a single setup.
The ability to machine a tool in a single setup not only improves accuracy but also reduces production time and potential for errors. This is particularly beneficial when working with expensive materials like PCBN, where minimizing waste and maximizing precision is crucial.
Electron beam melting (EBM) for refractory metal tools
Electron Beam Melting (EBM) is an additive manufacturing technique that has shown great promise for producing FSW tools from refractory metals. This process uses a high-power electron beam to selectively melt metal powder, building up the tool layer by layer.
EBM is particularly well-suited for materials like tungsten and molybdenum, which are challenging to work with using conventional methods due to their high melting points and hardness. The ability to produce complex geometries from these materials opens up new possibilities for FSW tools capable of welding high-temperature alloys and other challenging materials.
As FSW technology continues to evolve, the customization of tools for specialized projects will remain a critical area of development. From advanced materials and coatings to innovative geometries and integrated sensors, these customized tools are pushing the boundaries of what's possible in materials joining. By leveraging these advancements, engineers can tackle increasingly complex welding challenges, opening up new opportunities for lightweight, high-strength structures across a wide range of industries.
